ZVF510 series frequency inverter is a new design of compact and economic inverter, with economic, small, easy to use, reliable features, excellent performance, rich features, widely used in logistics equipment, textile equipment, packaging equipment, music fountain and other industries.

Economic Save on equipment costs and increase lifecycle through technological innovation and experience-optimised design.

Mini Type Support seamless side-by-side installation in a small space, even plate cooling technology, multi-axis installation to save the cost of electrical cabinet.

Easy Use Network communication network, keyboard easy speed control; built-in macro applications, support for one-key setup parameters, saving equipment debugging labour costs.

Reliable Independent air ducts, triple-proof paint on the drive plate, intelligent fan, blocking protection, slip start, stable operation to reduce the loss of downtime.

Main Features

1. ZVF510 Series Frequency inverter are High power density design, Effectively realize small size, full power section book-type structure design, support seamless side-by-side installation in a small space.

2. Totally enclosed shell + independent air duct design.

More effective isolation of dust, to ensure the long-term stable operation of electronic components.

3. Large margin design,higher overload current, shorter acceleration time.

4. Built-in industry professional macro application, support one key to set industry parameters.

5. Standard Modbus communication, easy to realize industrial automation network.

Application Range

Common general purpose applications: fans, pumps, assembly line conveyors, etc.

Specialized occasions: constant pressure water supply, engraving machine, etc.

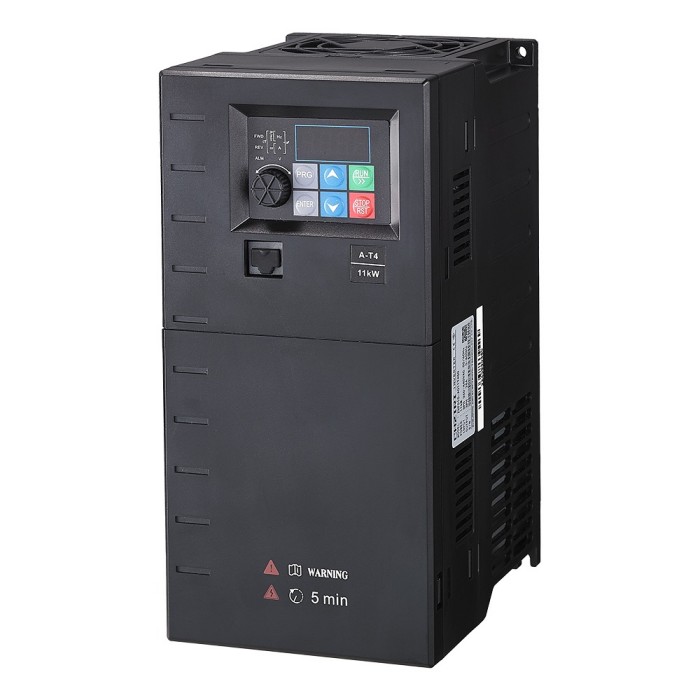

Demonstration of the model

SPECIFICATIONS

ZVF 510 Series Frequency Converter



	Input Voltage (V)	Output Voltage(V)	Power Range (kW)
	Single phase 200~240V	Three phase 0~Input Voltage	0.4~3.0kW
	Three phase 200~240V	Three phase 0~Input Voltage	0.4kW~5.5kW
	Three phase 360~440V	Three phase 0~Input Voltage	0.75kW~11kW





Outline & Mounting Dimension (Unit:mm)



Inverter Model	Voltage (V)	Power	Current	Dimension (mm)						Figure
		(KW)	( A)	H	H1	W	W1	D	d
ZVF510-A0R4S2S	220V	0.4	2.4	146	136.5	72	63	105	φ4.5	Fig.1
ZVF510-A0R7S2S	220V	0.75	4.5
ZVF510-A1R5S2S	220V	1.5	7.0
ZVF510-A2R2S2S	220V	2.2	10
ZVF510-A3R0S2S	220V	3.0	11	182	172.5	87	78	127	φ4.5	Fig.2
ZVF510-A0R7T4S	380V	0.75	2.5	146	136.5	72	63	105	φ4.5	Fig.1
ZVF510-A1R5T4S	380V	1.5	3.7
ZVF510-A2R2T4S	380V	2.2	5.0
ZVF510-A3R0T4S	380V	3.0	6.8
ZVF510-A4R0T4SD	380V	4.0	9.0	182	172.5	87	78	127	φ4.5	Fig.2
ZVF510-A5R5T4SD	380V	5.5	13
ZVF510-A7R5T4SD	380V	7.5	17	240	229	118	106	155	φ5.5	Fig.3
ZVF510-A011T4SD	380V	11	24





Three phase  220V



Inverter Model	Voltage (V)	Power	Current	Dimension (mm)						Figure
		(KW)	( A)	H	H1	W	W1	D	d
ZVF510-A0R4T2S	220V	0.4	2.4	146	136.5	72	63	105	φ4.5	Fig.1
ZVF510-A0R7T2S	220V	0.75	4.5
ZVF510-A1R5T2S	220V	1.5	7.0
ZVF510-A2R2T2S	220V	2.2	10
ZVF510-A3R0T2SD	220V	3.0	11	182	172.5	87	78	127	φ4.5	Fig.2
ZVF510-A4R0T2SD	220V	4.0	16	240	229	118	106	155	φ5.5	Fig.3
ZVF510-A5R5T2SD	220V	5.5	20





Optional Parts

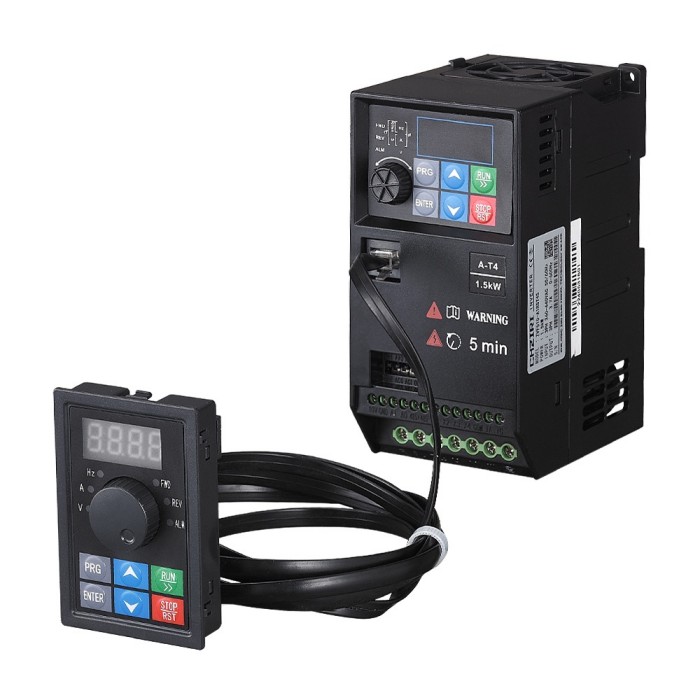

ZVF510 keypad	Remote Control Cable

Rated Drawings

ZVF510 Frequency inverter’s Standard Wiring Diagram



Technical Indications

Item		Item  Description
Input	Rated  voltage & Frequency	Single-phase/3 Phase 200-240VAC, 3 Phase 360-440VAC,50/60Hz
	Allowable voltage working range	Voltage fluctuation range:±10% Voltage unbalance rate: <3%, Frequency fluctuation:≤±5%
Output	Rated  voltage	3 Phase 0～Input voltage VAC
	Frequency	0.0～600Hz
	Overload capacity	110% long-term,150%1minute,180% 5 seconds
Control your performance	Control mode	V/F control, Simple vector control, Advanced vector control, Torque control
	Frequency resolution	Digital setting：0.1Hz Analog setting: Maximum frequency×0.1%
	Frequency accuracy	Digital setting：0.1Hz Analog setting: within 0.2% of the maximum output frequency
	V/F Voltage frequency characteristic	Three modes: the first is a linear torque characteristic curve, the second is a square torque characteristic curve, and the third is a user-set V/F curve.
	Automatic limit current and limit voltage	No matter in the process of acceleration, deceleration or stable operation, it will automatically detect the motor stator current and voltage, and suppress it within the allowable range according to the unique algorithm, minimizing the possibility of system fault tripping.
	Vector voltage-frequency characteristics	Automatically adjust output voltage-frequency ratio according to motor parameters and unique algorithm
	Torque characteristics	Starting torque: 100% rated torque at 5.0Hz (VF control) 150% rated torque at 1.0Hz (vector control)
	Current and voltage suppression	Full current closed-loop control, completely avoid current impact, with perfect overcurrent and overvoltage suppression function
	Under voltage suppression during operation	Especially for users with low grid voltage and frequent grid voltage fluctuations, even if the voltage is lower than the allowable range, the system can maintain the longest possible running time according to the unique algorithm and residual energy allocation strategy
	Slip compensation	Setting range: 0~100%, can automatically adjust the output frequency of the inverter according to the motor load, and reduce the rotation speed change of the motor caused by the load change
	Carrier frequency	2.0～20.0KHz
	Automatic voltage regulation operation	Dynamic voltage stabilization, static voltage stabilization, and no voltage stabilization can be selected according to the need to obtain the most stable operation effect.
	Built-in PID	It can easily constitute a closed-loop control system, suitable for process control such as pressure control and flow control
