Main Features

ZVF330 Series Mini Type AC Drive are developed for general applications of small power and OEM market. It applies V/f control technology, making the functions of PID, multiple-speed step, DC braking, Modbus communication, as well as less installation space .ZVF330 Series AC drive is for small automation equipment of economical type, especially suitable for electronic equipment, food packaging, wood, glass and other small power transmission

1. Output frequency :0-600Hz.

2. Multiple password protection mode

3. Remote control operation keypad, convenient for remote control.

4. V/F curve &multi-inflection point setting, flexible configuration .

5. Keyboard parameter copy function. easy to set the parameters for multi-inverters .

6. Wide industry application . to expand special function according to different industries.

7. Multiple hardware and software protection and optimized hardware for anti-interference technology.

8. Multi-step speed and wobble frequency running (external terminal 15 steps speed control).

9. Unique adaptive control technology . Auto current limiting and voltage limiting and under-voltage restrain .

10. Optimized external installation and internal structure and independent air flue design , fully enclosed electrical space design .

11. Output automatic voltage regulation function .(AVR),automatically adjust the output pulse width . to eliminate the  influence  of the grid change on load .

12. Built-in PID regulation function to facilitate the  realization of closed loop control of the temperature ,pressure and flow . and reduce the cost of the control system .

13. Standard MODBUS communication protocol . easy to achieve the communication between PLC,IPC and other industrial equipment.



Demonstration of the Model



Application Range

Metal processing ,digital machine tool, wire drawing bench and other mechanical equipment . paper making equipment ,chemistry industry ,medicine industry and textile industry ,all kinds of fans and pumping load .etc

Specification

Input Voltage (V)	Output Voltage(V)	Power Range (kW)
Single phase 220V± 20%	Three phase 0~Input Voltage	0.4kW~2.2kW
Three phase 380V ± 20%	Three phase 0~Input Voltage	0.75kW~7.5kW

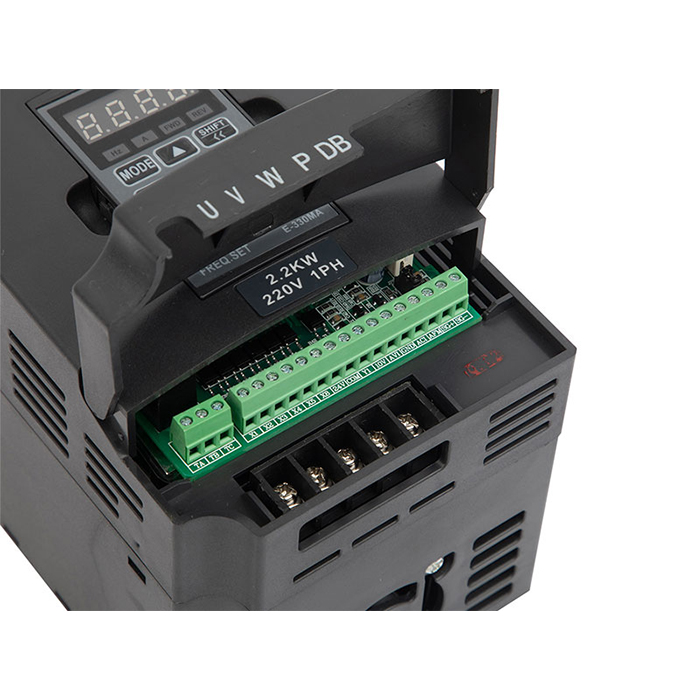

ZVF330 Series Mini AC Drive

Inverter Outline Dimension &Outline Dimension



Keypad for ZVF330 Series AC Drive





Inverter Outline& Mounting Dimension (Unit:mm)



Inverter Model	Voltage (V)	Power (KW)	Current ( A)	Dimension (mm)						Figure
				H	H1	W	W1	D	d
ZVF330-M0R4S2MD	220V	0.4	2.4	142	131	85	74	125	Ф5	Fig.1
ZVF330-M0R7S2MD		0.75	4.5	142	131	85	74	125	Ф5
ZVF330-M1R5S2SD		1.5	7.0	151	140	100	89.5	129	Ф5
ZVF330-M2R2S2SD		2.2	10	151	140	100	89.5	129	Ф5
ZVF330-M0R7T4SD	380V	0.75	2.5	151	140	100	89.5	129	Ф5
ZVF330-M1R5T4SD		1.5	3.7	151	140	100	89.5	129	Ф5
ZVF330-M2R2T4SD		2.2	5.0	151	140	100	89.5	129	Ф5
ZVF330-M3R7T4MD		3.7	9.0	220	205	125	110	176	Ф6.5	Fig.2
ZVF330-M5R5T4MD		5.5	13	220	205	125	110	176	Ф6.5
ZVF330-M7R5T4MD		7.5	17	220	205	125	110	176	Ф6.5



Three phase 220V



Inverter Model	Voltage (V)	Power (KW)	Current ( A)	Dimension (mm)						Figure
				H	H1	W	W1	D	d
ZVF330-M0R7T2MD	220V	0.75	4.5	151	140	100	89.5	129	Ф5	Fig.1
ZVF330-M1R5T2SD		1.5	7.5	151	140	100	89.5	129	Ф5
ZVF330-M2R2T2SD		2.2	10	151	140	100	89.5	129	Ф5
ZVF330-M3R7T2MD		3.7	16	220	205	125	110	176	Ф6.5	Fig.2
ZVF330-M5R5T2MD		5.5	25	220	205	125	110	176	Ф6.5

Rated Drawings
