Main Features

The product ZSI800 Solar Inverter Series applies to transforming three phase 380V or Single phase 220V submersible deep well pump into solar water pump system. It works this way that direct current produced by solar module inputs into alternating current which drives all kinds of water pump ,especially for submersible well pump .

Main features of this products are high quality, multifunctional, low noise, wide universality .etc.

1.Adopt advanced MPPT technology , fully make use of the power efficiency from solar module array .

2.With the changing of the sunshine ,it can automatically adjust motor speed and water flow out of pump .

3.It controls automatically when water level is high in pool. it stops work automatically ,however ,when water level is low .it activates automatically .

4.With the function of automatic protection .it can avoid pump form dry running while no water source .

5.Hibernate automatically under weak light such as sunset , quit hibernating under strong light such as sunrise .

6.To improve the liability of the working system with various protection .

7.Professionally designed for users of deep well pumps -friendly control and convenient use .



Product Description

For the working principle of solar photovoltaic panels and power supply features, this product has the following characteristics:

● MPPT is the abbreviation of Maximum Powqer Point Tracking (maximum power point tracking).The MPPT controller detects the voltage generated by a solar panel in real time and tracks the highest voltage and current (VI), allowing the system to charge the battery with maximum efficiency. Solar inverters play an important role in the PV system, coordinating the work of solar panels, batteries and loads. They are an indispensable component of the PV system.

● Software unique MPPT algorithm through the controller can detect real-time solar panel voltage regulation output frequency, fast dynamic response, and  the motor is always working at the maximum power point, so that the  solar photovoltaic panels to achieve the maximum economic efficiency.

● Software increases the keyboard encoder resolution setting function, a variety of resolutions can be selected . It’s convenient for the user to operate and use .

● The main power of frequency inverter can either use for solar PV DC power . can be single phase , three phase ac power , simple wiring , It truly multi-power working  mode. expanding the practical application of the inverter; wide voltage design, the inverter In the higher and lower voltage can  still stable work, product is strong adaptability.



Demonstration of the Model



Specification

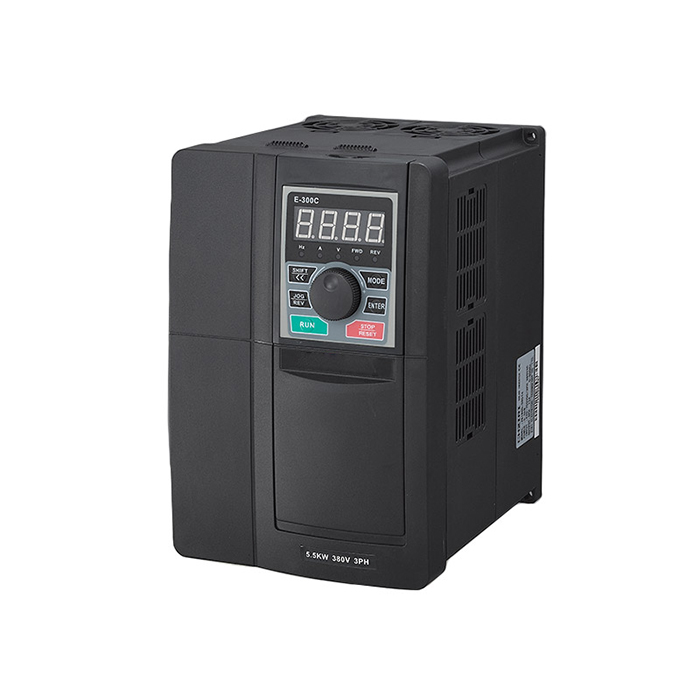

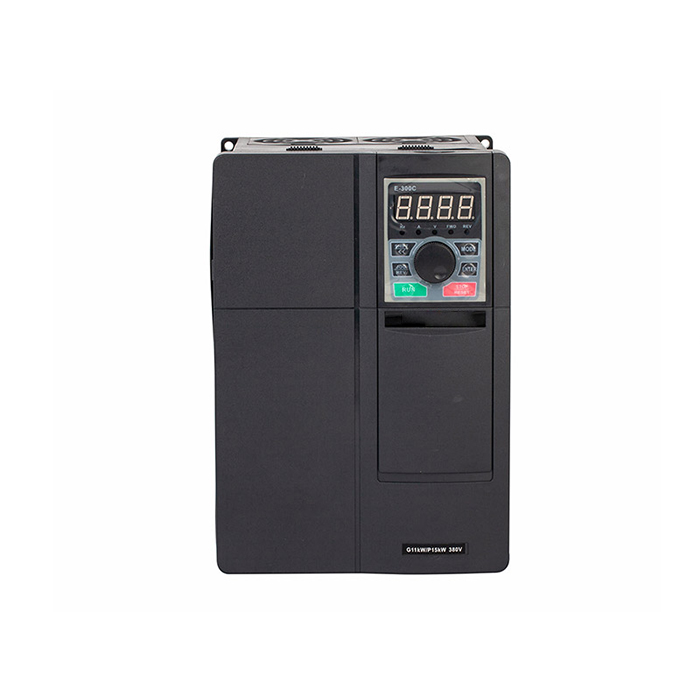

ZSI800 Solar Pumping Inverter Outline& Mounting Dimension ( Unit:mm)





Inverter Model	Input Voltage(v)	Power (KW)	Current (A)	Dimension (mm)						Figure
				H	H1	W	W1	D	d
ZSI800-0R4S2	260-380VDC (Single Phase 220V±15%)	0.4	2.4	185	175	118	108	170	5	Fig.1
ZSI800-0R7S2		0.75	4.5	185	175	118	108	170	5
ZSI800-1R5S2		1.5	7.0	185	175	118	108	190	5
ZSI800-2R2S2		2.2	10.0	185	175	118	108	190	5
ZSI800-0R7T4	420-750VDC (Three Phase 400V±15%)	0.75	2.5	185	175	118	108	170	5	Fig.1
ZSI800-1R5T4		1.5	3.7	185	175	118	108	170	5
ZSI800-2R2T4		2.2	5.0	185	175	118	108	170	5
ZSI800-3R7T4		3.7	9.0	185	175	118	108	190	5
ZSI800-5R5T4		5.5	13	215	205	145	135	193	5
ZSI800-7R5T4		7.5	17	215	205	145	135	193	5
ZSI800-011T4		11	25	265	253	185	174	215	6
ZSI800-015T4		15	32	265	253	185	174	215	6
ZSI800-018T4		18.5	37	385	370	220	150	210	7	Fig.2
ZSI800-022T4		22	45	385	370	220	150	210	7
ZSI800-030T4		30	60	450	435	260	180	225	7
ZSI800-037T4		37	75	450	435	260	180	225	7
ZSI800-045T4		45	90	510	490	320	220	275	9
ZSI800-055T4		55	110	510	490	320	220	275	9
ZSI800-075T4		75	160	570	550	380	260	320	9
ZSI800-090T4		90	176	570	550	380	260	320	9
ZSI800-110T4		110	210	570	550	380	260	320	9
ZSI800-132T4		132	253	570	550	380	260	320	9
ZSI800-160T4		160	300	800	775	460	350	330	11

Rated Drawings

ZSI800 Solar Pumping Inverter System

1.Solar pumping system can provide water for remote areas lacking of electricity or places where the electricity supply is unstable.

2. Solar pump Inverter can convert the DC power from solar panels to AC power so to drive various kinds of pumps.

3.Solar pumping Inverter System enables continuously pumping when in good weather. System is not equipped with storage battery devices, it is suggested that pumping the water to conservation pool for future use. Water source could come from river, lake, well, or other natural water source or special source.

4.System enables application of floating switch in the conservation pool or water





Application

Solar pumping systems can be applied to daily use (ground water),agricultural irrigation, forestry irrigation, desert control, pasture animal husbandry, water supply for islands, waste water treatment engineering, and so on.

Solar pumping system is dispensed with energy storing devices, and stores water instead of electricity. It improves the reliability of the device, and at the same time it lowers the construction and maintenance costs of the system dramatically.

Solar Pumping System Diagram
