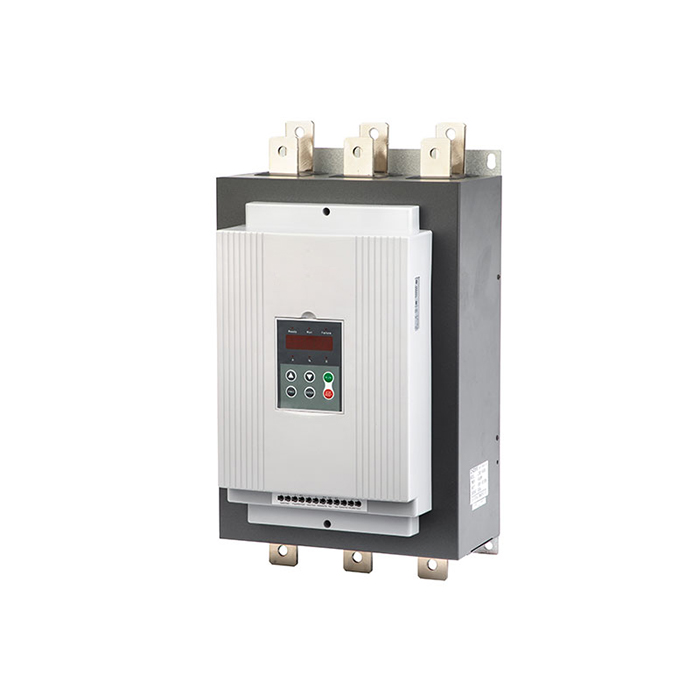

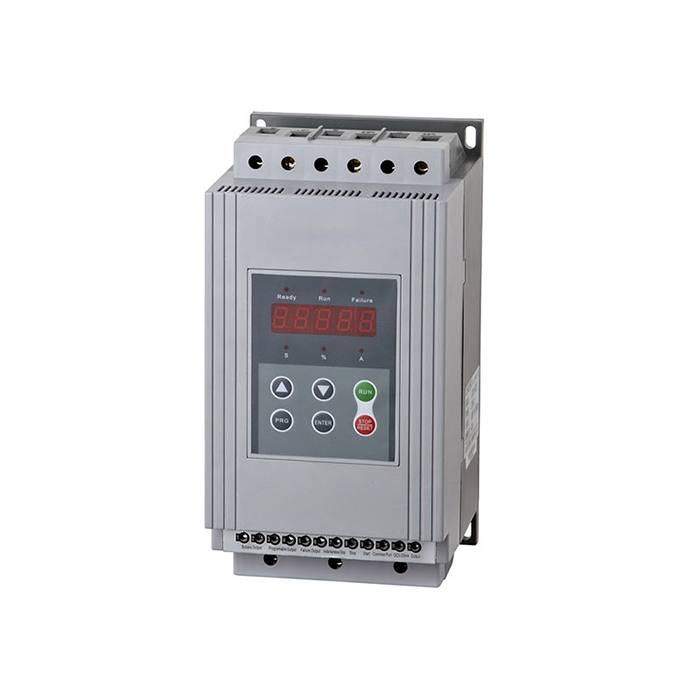

ZJR2 Series Soft Starter
ZJR2 Series Soft Starter
ZJR2 Series Soft Starter
ZJR2 Series Soft Starter

ZJR2 Series Soft Starter

ZJR2 Series motor soft starter is suitable for three phase.AC squirrel cage induction asynchronous motor, the voltage is 320V~ 460V.50(60)Hz. The rated current is 1200A and below. The soft starter is assembled type, need to add breakers (short circuit protection )and AC contactor ( Bypass ) inside the cabinet, together with switches are made up of electric motor control circuit. It’s no need to install the thermal relay, there have perfect motor protection

Tag: Category:

PRODUCT DESCRIPTION

Main Features

ZJR2 Series motor soft starter is suitable for three phase.AC squirrel cage induction asynchronous motor, the voltage is 320V~ 460V.50(60)Hz. The rated current is 1200A and below. The soft starter is assembled type, need to add breakers (short circuit protection )and AC contactor ( Bypass ) inside the cabinet, together with switches are made up of electric motor control circuit. It’s no need to install the thermal relay, there have perfect motor protection function while the motor start and running, adapt closed-loop control, improve the stationarity and reliability of the motor ‘s soft torque start and soft torque stop.Use By-pass contactor when running. The running power is almost zero. It can improve the reliability of the soft starter and reduce the overall size.



1.16 SCM control, intelligent all-digital display.

2.Can be put into practice a soft starter control multiple motors.

3.Starting modes: Current limiting starter. Voltage ramp start, Kick start +current-limiting start, Kick start +voltage ramp start. Current ramp start. Voltage current-limiting double closed-loop start.

4.Free stop and soft stop. The stop time from 0 to 60 seconds can be arbitrary selected .

5.Over current. Overload. Open phase, instantaneous stop and other fault protection, with the flow, lack phase, instantaneous stop, and other malfunction protection.

6.Easy installation, simple operation, strong function and reasonable price.

7.5.5kW-55kW soft starter also have built-in bypass contactor. But the factory default is not with built-in bypass contactor. Clients need to confirm this once order confirmed.



Demonstration of the Model

Specification

Soft Starter Outline & Mounting Dimension (Unit:mm)



Motor Guide for ZJR2 Soft Starter

Power Range:5.5kW~55kW



Model Rated Power(KW) Rated Current (A) Outline Size Install Size
H1 W1 D H2 W2 d
ZJR2-3055/4055 5.5 kW 11 A 270 145 159 245 130 7
ZJR2-3075/4075 7.5 kW 15 A 270 145 159 245 130 7
ZJR2-3110/4110 11 kW 23 A 270 145 159 245 130 7
ZJR2-3150/4150 15 kW 30 A 270 145 159 245 130 7
ZJR2-3185/4185 18.5 kW 37 A 270 145 159 245 130 7
ZJR2-3220/4220 22 kW 43 A 270 145 159 245 130 7
ZJR2-3300/4300 30 kW 60 A 270 145 159 245 130 7
ZJR2-3370/4370 37 kW 75 A 270 145 159 245 130 7
ZJR2-3450/4450 45 kW 90 A 270 145 159 245 130 7
ZJR2-3550/4450 55 kW 110A 270 145 159 245 130 7



Power Range :75kW~600kW



Model Rated Power(kW) Rated Current (A) Outline Size Install Size
H1 W1 D H2 W2 d
ZJR2-3750/4750 75 kW 150 A 530 260 202 380 235 10
ZJR2-3900/4900 90 kW 180A 530 260 202 380 235 10
ZJR2-31150/41150 115 kW 230 A 530 260 202 380 235 10
ZJR2-31320/41320 132 kW 264 A 530 260 202 380 235 10
ZJR2-31600/41600 160 kW 320 A 530 260 202 380 235 10
ZJR2-32000/42000 200 kW 400 A 530 260 202 380 235 10
ZJR2-32500//42500 250 kW 500 A 560 290 245 460 260 10
ZJR2-32800/42800 280 kW 560 A 560 290 245 460 260 10
ZJR2-33200/43200 320 kW 640 A 560 290 245 460 260 10
ZJR2-34000/44000 400 kW 800 A 600 330 245 500 300 10
ZJR2-34500/44500 450 kW 900 A 600 330 245 500 300 10
ZJR2-35000/45000 500 kW 1000A 760 406 260 540 370 10
ZJR2-36000/46000 600 kW 1200A 760 406 260 540 370 10

Technical Indications

Item Item Description
Input Power Supply Input Voltage Three phase 320V~ 460VAC
Frequency 50/60Hz
Adaptive Motor Squirrel-cage three-phase asynchronous motor
Starting Times It is recommended not to exceed 20 times per hour.
Control Mode 1)Operation panel control;2) Operation panel + external control;3)External control;4) External control + COM control;5)Operation panel + external + COM control;6) Operation panel + COM control;7) COM control;8) No start or stop operation.
Start Mode 1)Current-limiting start;2) Voltage ramp start;3) Kick start + current-limiting start;4) Kick start + voltage ramp start;5) Current ramp start;6) Voltage current-limiting double closed-loop start.
Stop Mode 1) Soft stop; 2) Free stop.
Protective Function 1) Open loop protection for external instantaneous stop terminals;

2) Over-heat protection for soft starter;

3) Protection for too long starting time;

4) Input open phase protection;

5) Output open phase protection;

6) Unbalanced three-phase protection;

7) starting over current protection;

8) Running overload protection;

9) Under voltage protection for power voltage;

10) Over voltage protection for power voltage;

11) Protection for fault parameter setting;

12) Load short circuit protection;

13) Auto restart or incorrect wiring protection;

14) Incorrect wiring protection of external control stop terminals.
Ambient Place to be used Indoor location with good ventilation free from corrosive gas and conductive dust.
Altitude Below 3000M. It have to rise the rate power when the altitude is more than 3000M.
Ambient Temperature -30～+55℃
Ambient Humidity ≤90%RH without dew condensation.
Vibration <0.5G
Structure Protection Class IP20
Cooling Pattern Natural wind cooling.

Rated Drawings

Basic Wiring Diagram ZJR2 soft starter external contactor
