ZJR7000 Series 690V Soft Starter
ZJR7000 Series soft starter can support 690V. is a highly intelligent, very reliable and easy to use soft starter. ZJR7000 Series built-in soft starter is a perfect solution with newly designed functions for quick setup or more personalized control. Its performance includes.
PRODUCT DESCRIPTION
Main Features
690V Motor Soft Starter
ZJR7000 Series soft starter can support 690V. is a highly intelligent, very reliable and easy to use soft starter. ZJR7000 Series built-in soft starter is a perfect solution with newly designed functions for quick setup or more personalized control. Its performance includes.
1.A large LCD screen that displays feedback in multiple languages.
2.A remote-mounted operating keypad.
3.Intuitive programming.
4.Advanced start and stop control functions.
5.A series of motor protection functions.
6.Extensive performance monitoring and error records.

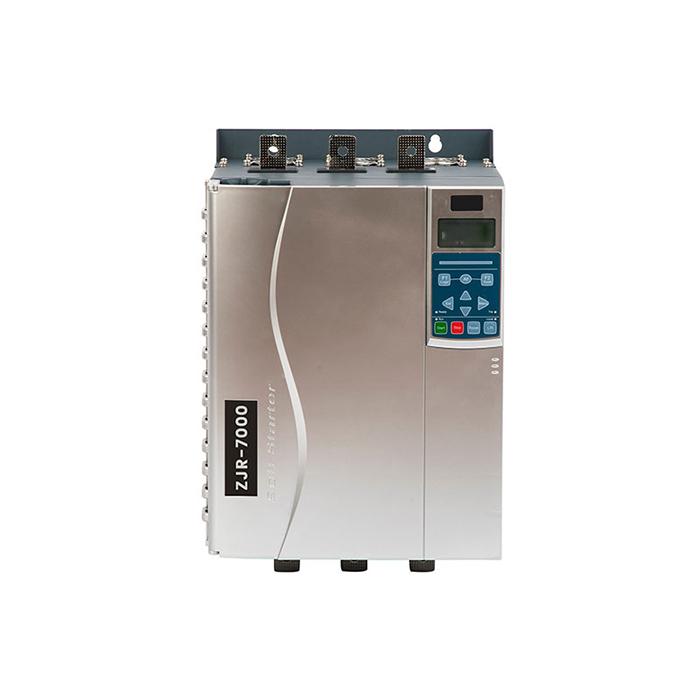

Demonstration of the Model
Application Range
690V soft starter ZJR7000 can meet the requirements of following loads with medium voltage:
centrifugal pump, bill grinder, fan ,piston compressor, light load motor ,hoist machinery, mixer, crusher screw compressor, screw conveyor belt, belt, conveyor and heat pump and so on.
Specification
690V Soft Starter Outline& Mounting Dimension (Unit:mm)
| Soft starter Model | Rated Power(kW) | Voltage(V) | Rated Current (A) | Outline Size | Install Size | Figure | ||||
| A | C | E | B | D | d | |||||
| ZJR7000-0110-V7 | 11kW | 690V | 16A | 152 | 292 | 215 | 92 | 269 | M6 | Fig.1 |
| ZJR7000-0150-V7 | 15kW | 690V | 22A | |||||||
| ZJR7000-0185-V7 | 18.5kW | 690V | 27A | |||||||
| ZJR7000-0220-V7 | 22kW | 690V | 30A | |||||||
| ZJR7000-0300-V7 | 30kW | 690V | 37A | |||||||
| ZJR7000-0370-V7 | 37kW | 690V | 45A | |||||||
| ZJR7000-0450-V7 | 45kW | 690V | 60A | |||||||
| ZJR7000-0550-V7 | 55kW | 690V | 75A | |||||||
| ZJR7000-0750-V7 | 75kW | 690V | 90A | 274 | 408 | 260 | 160 | 385 | M8 | Fig.2 |
| ZJR7000-0900-V7 | 90kW | 690V | 110A | |||||||
| ZJR7000-1150-V7 | 115kW | 690V | 145A | |||||||
| ZJR7000-1320-V7 | 132kW | 690V | 180A | 440 | 530 | 290 | 320 | 530 | M8 | Fig.3 |
| ZJR7000-1600-V7 | 160kW | 690V | 220A | |||||||
| ZJR7000-1850-V7 | 185kW | 690V | 260A | |||||||
| ZJR7000-2000-V7 | 200kW | 690V | 260A | |||||||
| ZJR7000-2500-V7 | 250kW | 690V | 320A | |||||||
| ZJR7000-2800-V7 | 280kW | 690V | 370A | |||||||
| ZJR7000-3200-V7 | 320kW | 690V | 400A | |||||||
| ZJR7000-4000-V7 | 400kW | 690V | 500A | |||||||
Noted: From 450-1200kW 690V soft starter. Horco Electrical don’t have stock in warehouse ,we need to can produce customize-made.
Technical Indications
1. 690V soft starter ZJR7000 Series No need to install bypass contactor . new built-in contactor inside the 690V soft starter . Compared with bypass soft starter with external ordinary AC contactors, the performance improved by 3 times, the heat dissipation is 2.6 times, the safety is improved by 25%, and the energy-saving improved by 20%.the service life can reach more than 100,000 times.
2. 690V soft starter ZJR7000 Series LCD keypad display real language feedback, track motor condition with real-time metering display and 99 event logging with time-stamped operation and performance details.
3. ZJR7000 Series have optional operation panel mounting kit ,the clients need to pay for the remote control operation panel mounting kit. the operation keypad can be easily installed in the front of control panel , if multiple soft starters are installed in one cabinet, this facilitates centralized control in one place, and all relevant information can be obtained to diagnose problems quickly.
4. The plug-in control terminal block is adopted, which is very easy to install. Just remove each terminal block and reinsert the terminal block after connecting the wires. The unique flexible cable routing method of ZJR7000 can be used to effectively arrange the cables. The cables can be arranged from the top, left Or the bottom trace.
